Product Introduction

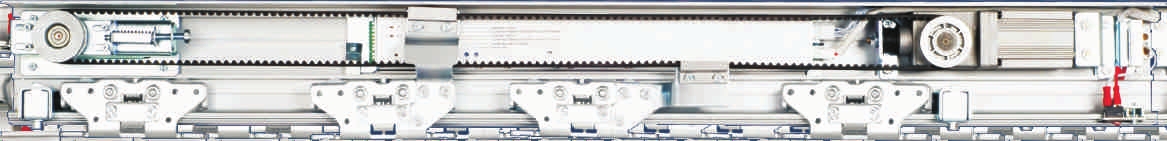

KE-150 automatic sliding door
FUNCTION INTRODUCTIONM
The control device of sliding automatic door contains basic function and extensional function, automatic operation/hold-open/lock/half- open to meet customer needs. Control device has multiple interfaces for choosing various connectors such as: safety beam photocell, electric locks, etc. Its drive devices adopts European technology to integrate motor with gear box, which offers strong driving and reliable operation and increased power output , it can adapt to a large door.
TECHNICAL DATA
Door configuration: Single leaf, Double leaves
Limited Weight: ≤1×150kg, ≤2×120kg
Door leaf width: 700-1300mm, 600-1200mm
Power voltage: AC 110V-220V±10%, 50/60Hz
Power consumption: < 70W
Opening speed: 200-450mm/S(adjustable)
Closing speed: 200-450mm/S(adjustable)
Hold-open time: 0-9S(adjustable)
Manual force: <40N, <50N
Sensor mode: Various
Sliding noise: ≤55Db
Environment temperature: -20 ~ +50℃
FUNCTION INTRODUCTION
Reliability Wisdom Control unit WisdomControllerreceivethesignalfromdoorsensors(switches) , givedriven signaltothemotor, the door is working. It is designed to face the whole world, it is no need use transformer for changing supply power. There is safety interface for connecting safety sensor and e-lock for night locking.
Powerfuldrivemotor ThepowerfulmotorissmallandDCpowerpush-less,connectionwithquietgearboxtodrivethebeltwheel, thereisself-protectionpartsinsidewhichensurethemotorcanworkforlongtime.
Convenience Good modular design offers very easy installation. Only need tofit all components into the guide rail and connect each part well,it can work after activating the power supply.
